  Stealth SV

Statement Level System

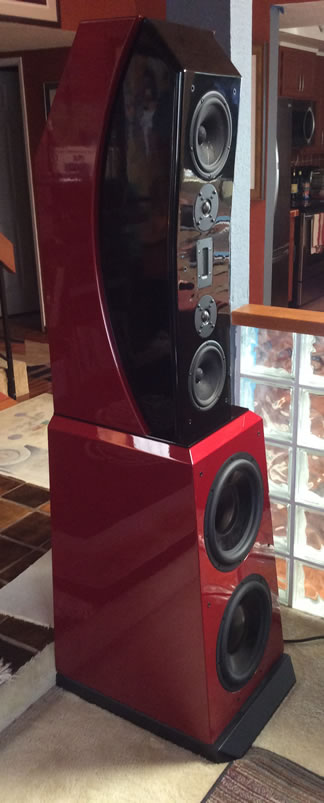

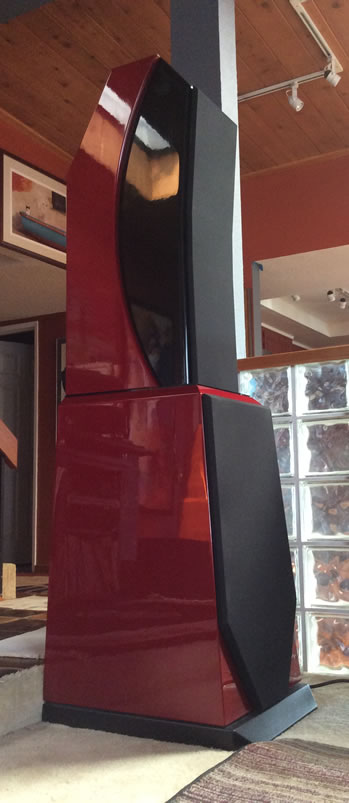

THE ZETA is a statement level speaker that uses both moving coil and ribbon drivers to achieve a natural, full bandwidth, dynamic recreation of the original musical event. The ZETA incorporates a 1000 WPC CLASS D amplifier per channel to control the dual twelve inch woofers and a parametric EQ SYSTEM that allows complete flexibility for the speaker to integrate into just about any room environment. The crossover system for the ZETA is also unique in it's implementation of a series crossover which allows for a very clear, and seamless presentation and that elusive three dimensional imaging so sought after.


  Specifications
  Summary Full range system including active drive of the two 12" woofers with variable crossover control. The end user will supply their own amplifier to drive the remaining drivers from 200hz.
  Frequency response 22 Hz to 35 KHz +/- 3 DB

  Nominal impedance 4 OHMS
  Sensitivity 2.83 Volts yields 90 DB at one meter

  Power handling 400 watts continuous / 1000 watts peak

  Crossover topology Combination 1st and 4th order "damped" networks with parallel "trap circuit" implementation

  Driver complement 2 x 12" woofers controlled by 1000WPC Amplifier , 2 x 7" mid-range, 2 x 1" soft dome fabric tweeters, 1 x 4" ribbon super tweeter
  Dimensions 70" Tall, 24" Deep at Bottom, 6" Deep at Top, 18" Wide at Bottom, 12" Wide at Top
  Weight 330 lbs. per side (woofer and upper sections combined) net / 440 lbs. crated [per channel]
